Campervan Overhead Cabinets

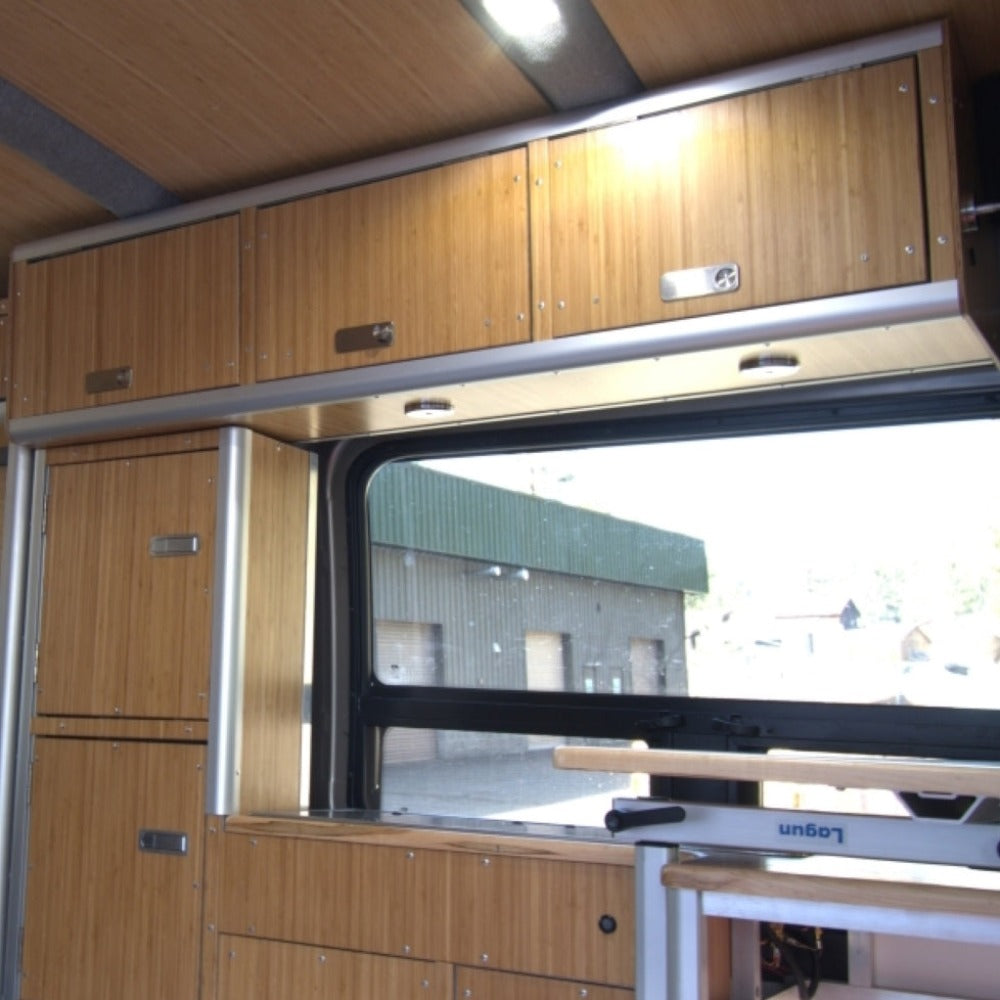

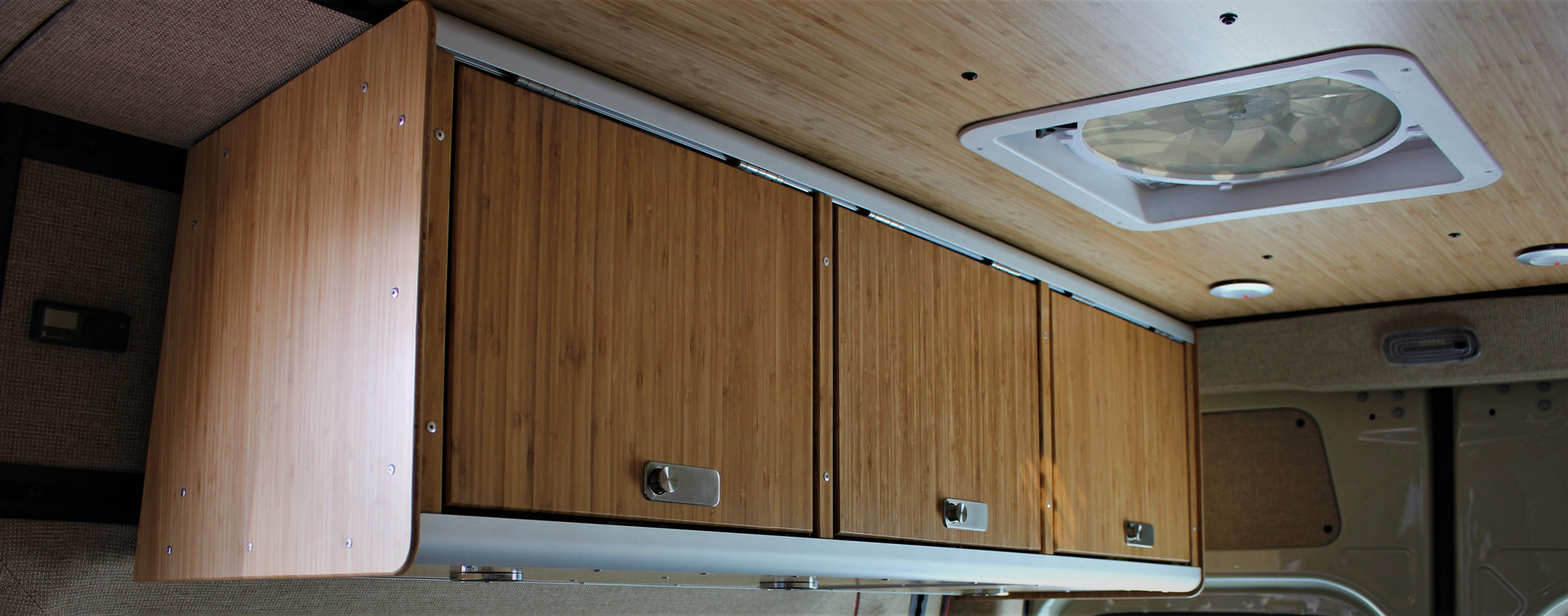

Our Overhead Cabinets are a great option for increasing your van's interior storage by utilizing the upper corners of your build. Featuring flip up doors with gas strut supports and mechanical door latches to secure your gear. Offered in 3 different length sizes, you can easily incorporate these Overhead Cabinets into any build. Built with our proprietary Space Frame riveted aluminum construction, these units are light, strong, and quiet, meaning no squeaks or rattles. Contoured to the wall and ceiling interface offers and clean and professional finish.

Overhead Cabinets can be safely mounted to L-Track with the supplied brackets, studs , and nuts. This includes Adventure Wagon systems. Alternatively, these cabinets can be mounted with rivet nuts and select hardware directly into your van's structural members in the wall and ceiling.

 *Factory headliners can also be trimmed and replaced after mounting the cabinets solidly to the van ceiling ribs and walls*

Our Overhead Cabinets are offered for the following Vans ;

- Ford Transit - Mid and High roof

- Mercedes Sprinter - High Roof

Exterior Dimensions for all 3 widths

High roof models - 17 5/8" H x 14 1/2" D

Transit mid roof model - 13 1/4" H x 12" D

**Custom widths are available for an additional charge. contact us for more info.**

Optional LED puck lighting is available and these lights are mounted and pre wired and have their own integrated switch and dimmer on the light itself.

23" width has one light

39" width has 2 lights

55"+ sizes have 3 lights

  • Warm white 3000K color light
  • 240 lumens (on high) output
  • Dimmable from 100% to 30% brightness
  • Draws only 0.25 amps at 12V
