Electrical Systems

Our Power Systems utilize High End Electrical Components and are scalable for your needs. Available in most TK Cabinets, Beds, and Sofa Sleepers.

  • Power : 12V Only Power - 200 ah AGM Battery
  • Power : 12V Only Power - 200 ah Lithium
  • Power : AC/DC with 200ah AGM + 2000W inverter 30 amp Shore Power
  • Power : AC/DC with 200ah Lithium + 2000W inverter 30 amp Shore Power
  • Power : AC/DC with 400ah Lithium + 3000W inverter 30 amp Shore Power

This 12 V auxiliary battery system is appropriate for all full sized vans. This system is a complete turn-key solution. The only assembly or installation required is for the dual battery controller or DC/DC charger (for 2016 and newer Sprinters and Transits) that requires routing of a battery cable and signal wire from the primary battery back to the wheel well cabinet, and the installation of a chassis ground cable and shore power cable if applicable.

We spent a lot of time researching and testing all of the components that matched up with our requirements.. We wanted a maintenance and worry free system that was easy to monitor and charge and was programmable to allow for either AGM or lithium batteries in multiple configurations up to 400 ah in capacity. We also knew from past experience that most battery monitors did a poor job of showing "state of charge" and we wanted a more reliable way to judge our batteries charge and health. Safety was paramount,  so all circuits and the battery are protected separately in accordance to ANSI/RVIA LV  guidelines.

Note: there is additional storage space available in all sizes of the wheel well cabinets.after the electrical system is installed.

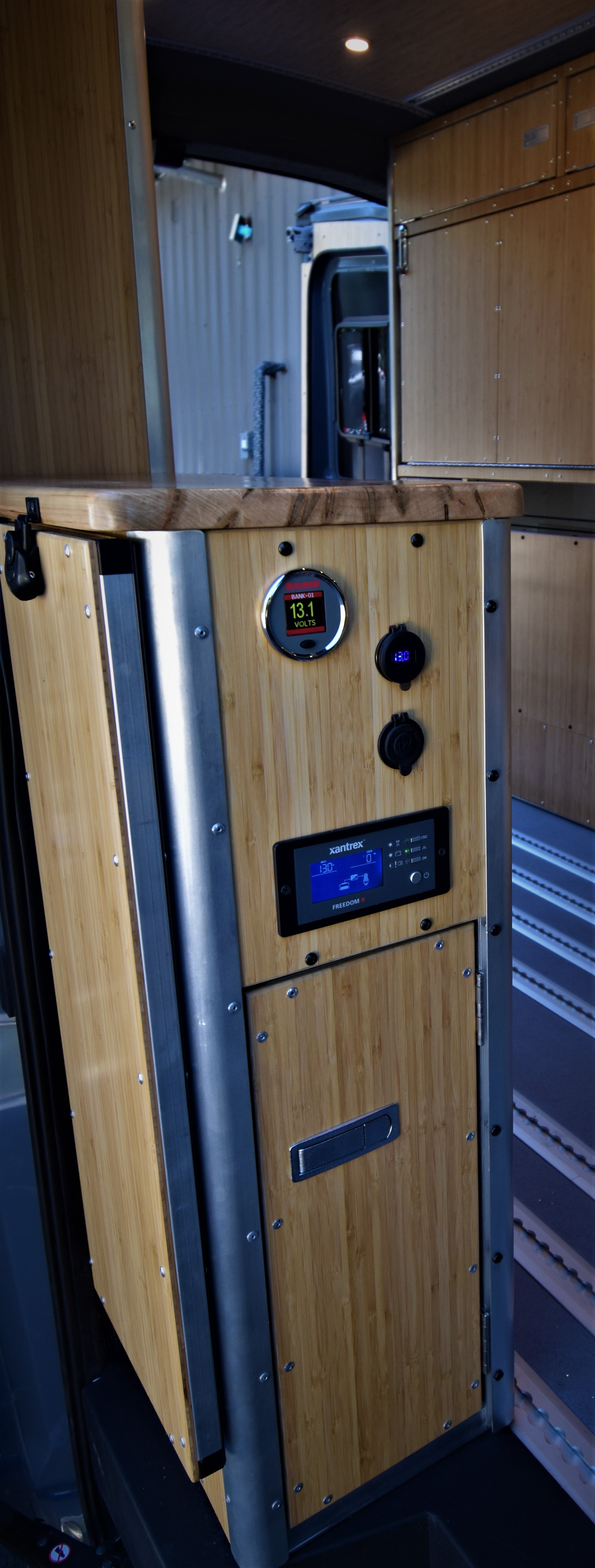

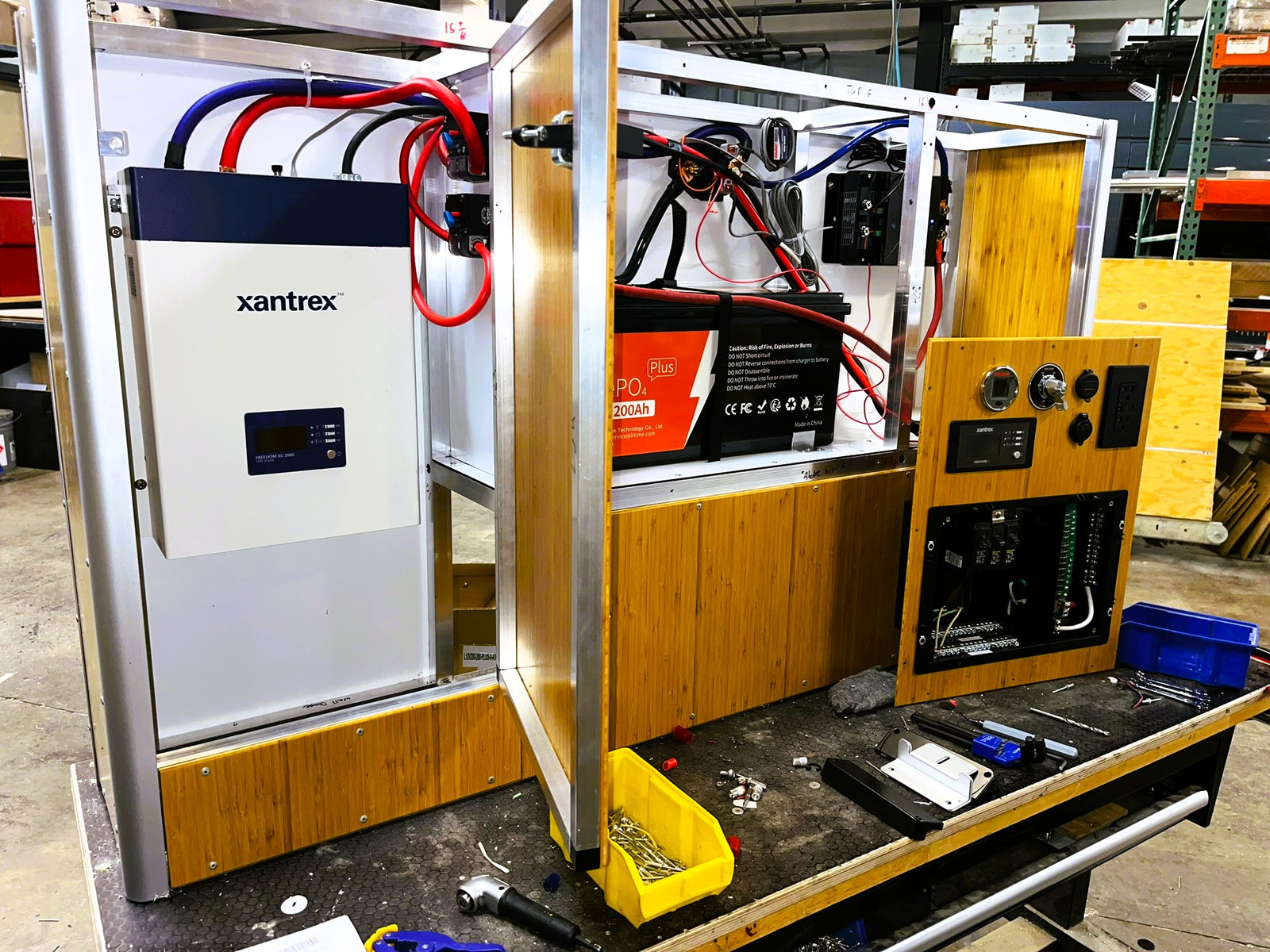

The AC/DC auxiliary battery systems contain the following features and can be located on either the passenger or driver side

  • Shore Power  (up to 30 amp AC input)
  • AC Auxiliary battery charger (from shore power)
  • Auxiliary battery charging from the Vehicle Alternator
  • DC/AC inverter for 120 V appliances (2000 or 3000 watts) - Xantrex Freedom XC models

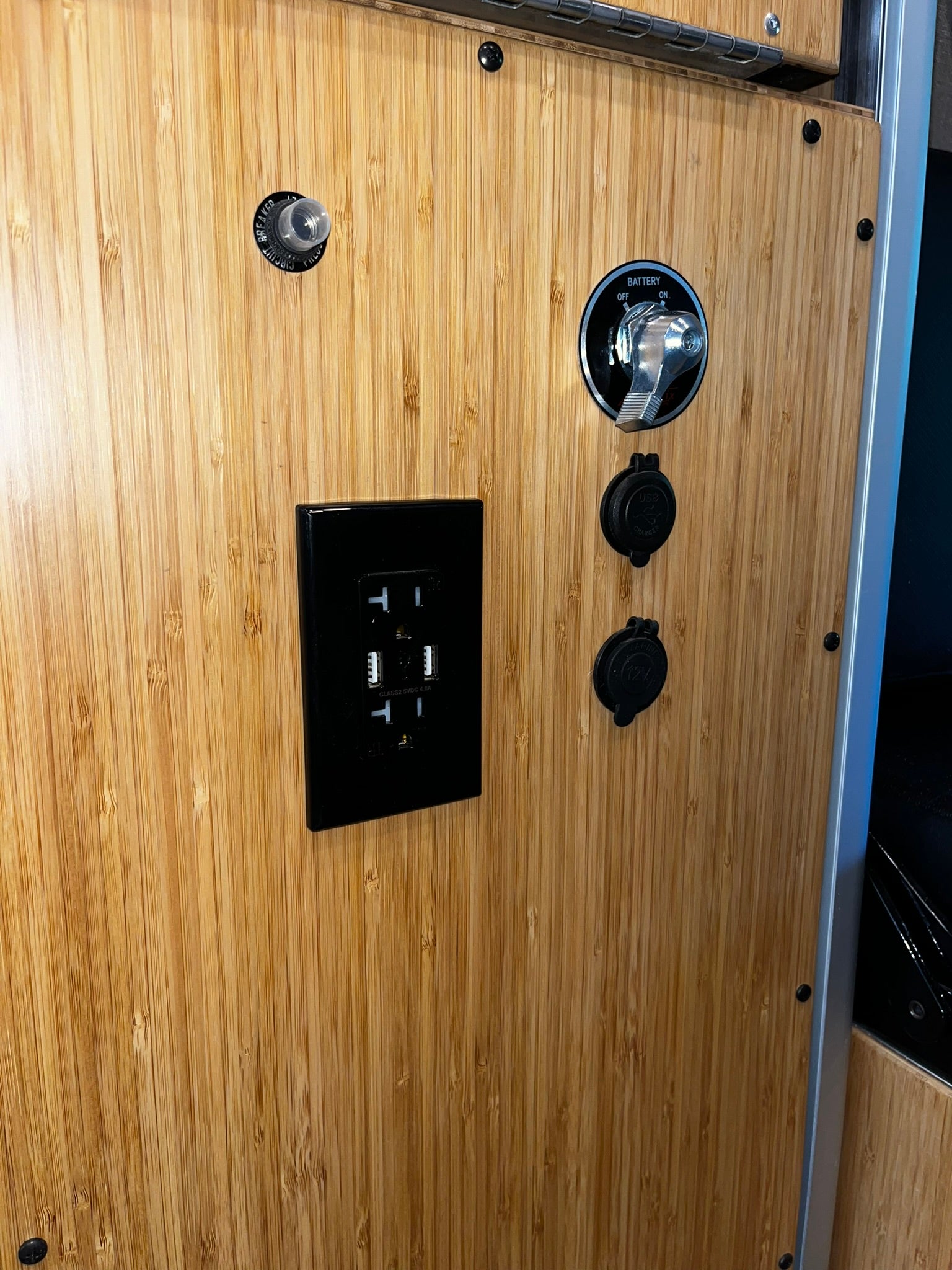

  • 120 V Wall Outlet, multiple USB and 12V ports

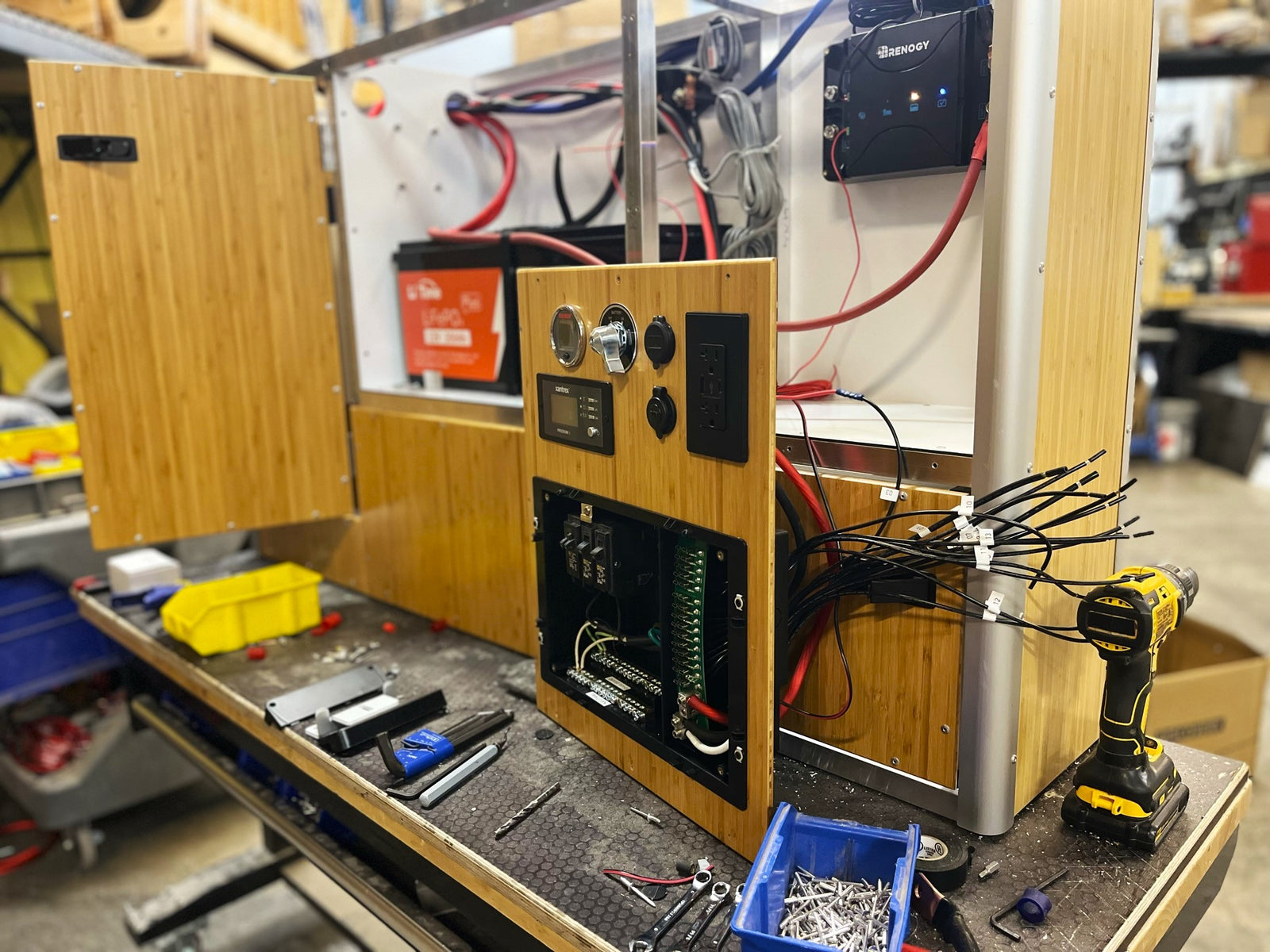

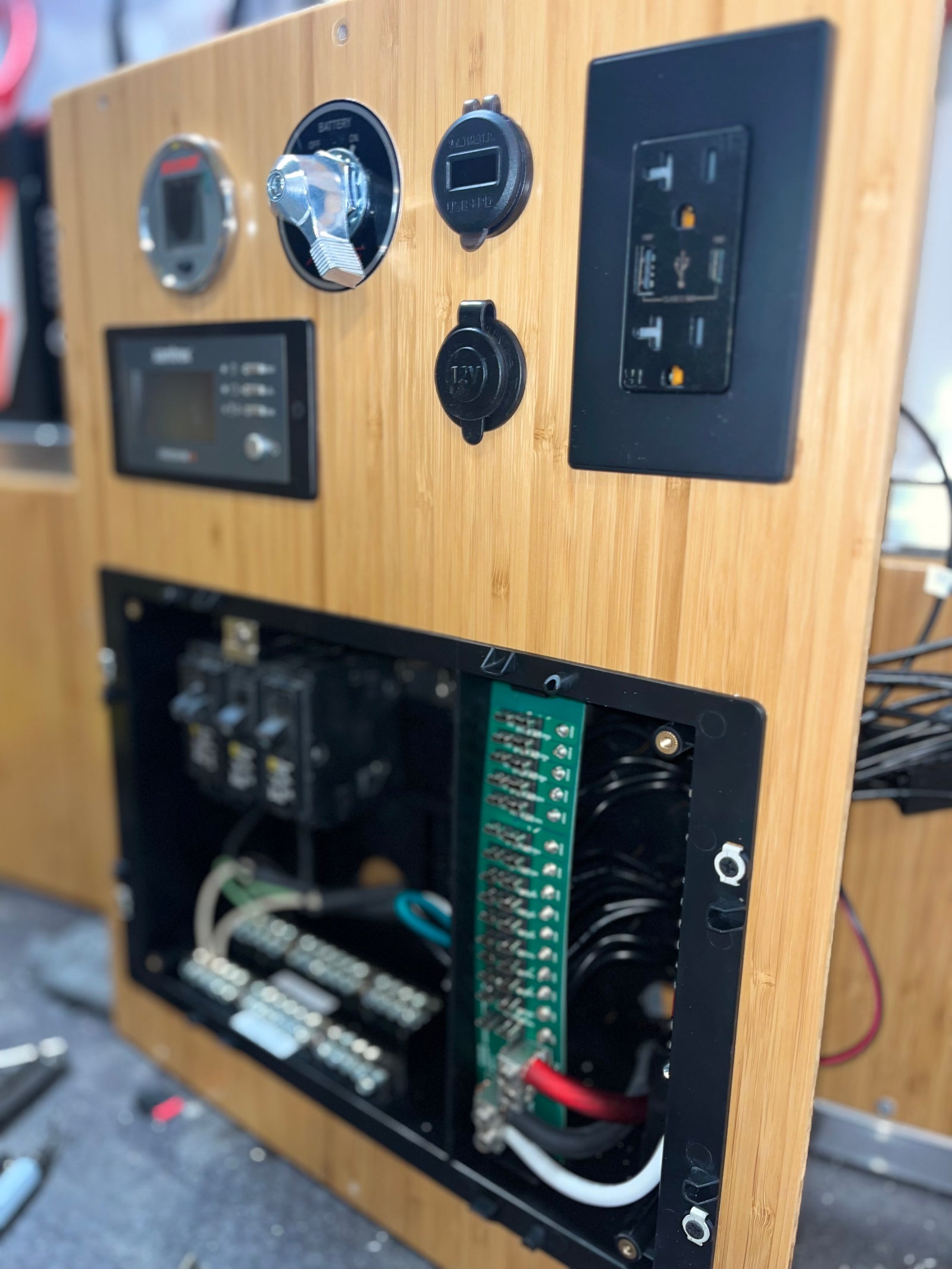

  • DC fuse box with 12 circuits.
  • Optiional AC circuit box available for up to 4 additional 120v circuits
  • DC main shut off

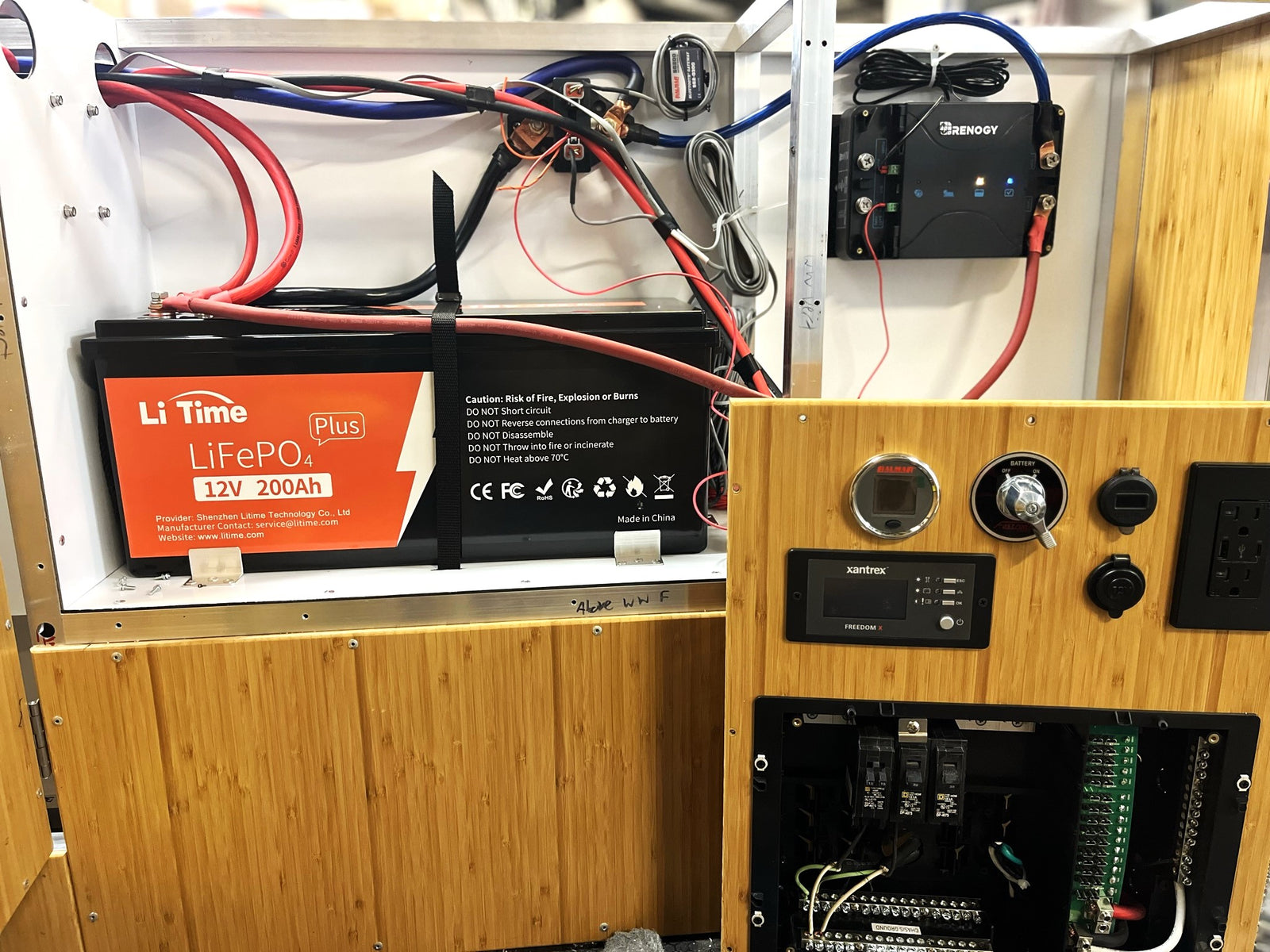

Major components included in the 12V auxiliary battery system

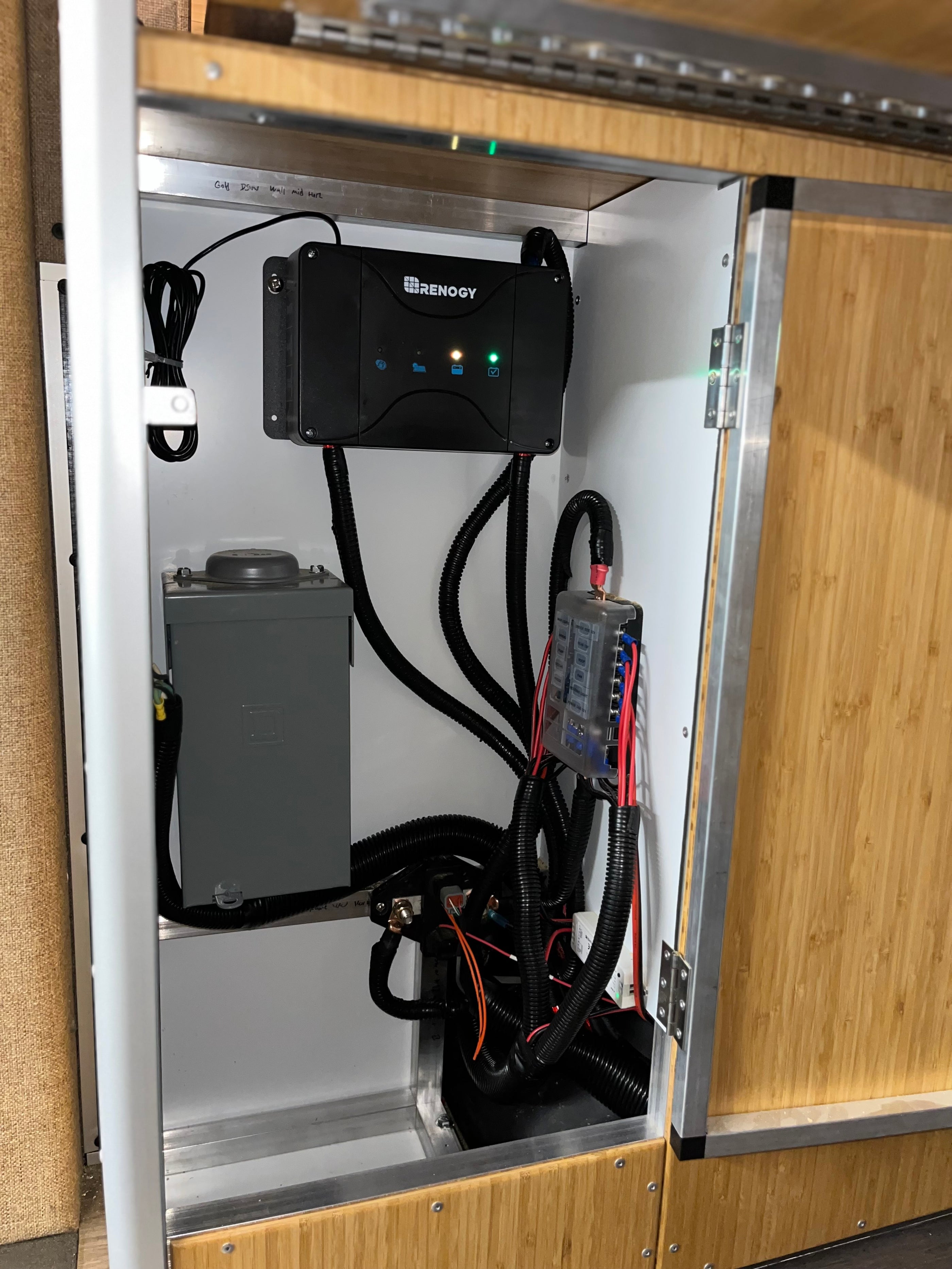

  • Renogy DC/DC controller -50 amp battery charger with built in MPPT controller for solar input

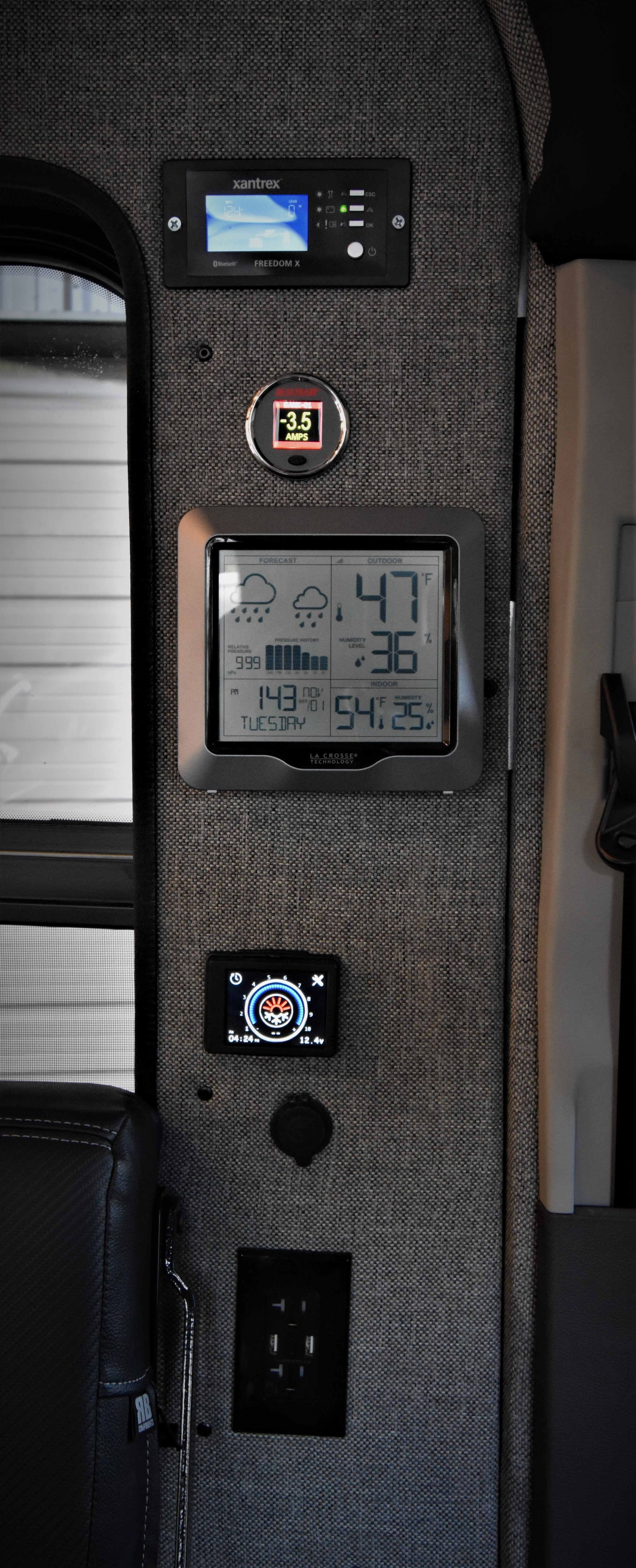

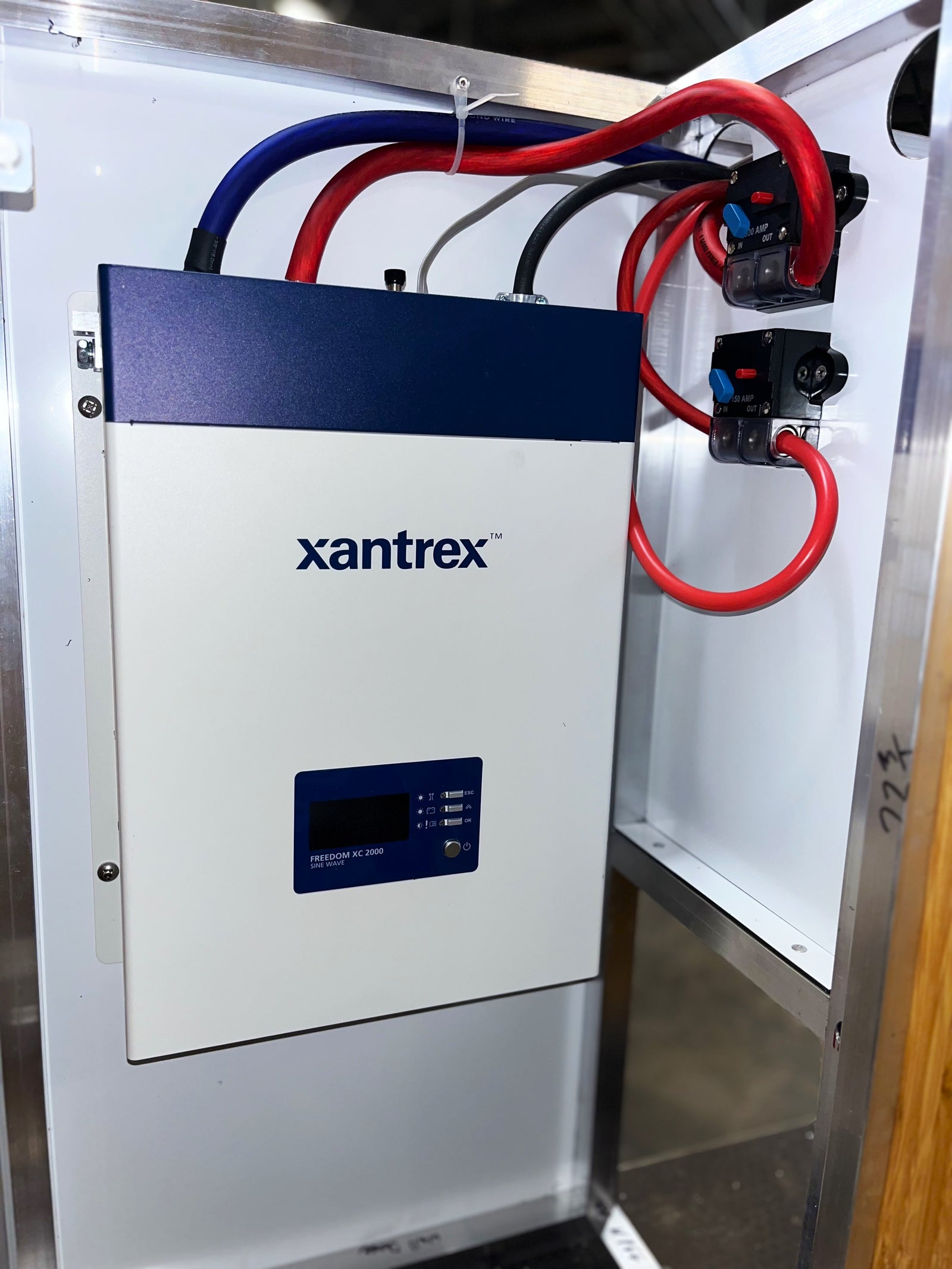

  • Xantrex XC charger/inverter -  Freedom XC 2000 and 3000 watt models available. Bluetooth enabled for connecting with your mobile phone

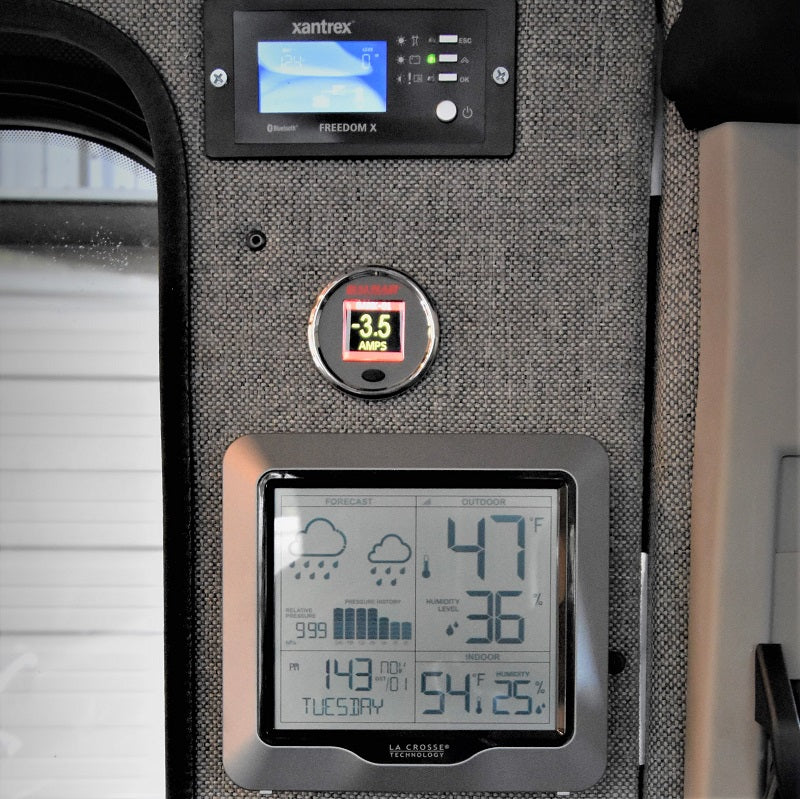

  • Balmar battery meter- Shunt based measurements gives highly accurate current and state of charge measurements. Bluetooth enabled for mobile phone use
  • Multiple AGM and Lithium battery options available and up to 400ah of battery storage capacity will fit in  a wheel well cabinet
